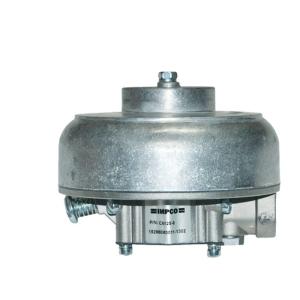

235CFM Single Diapragm CA125M 2 Impco Gas Mixer

Name: 235CFM Single Diapragm CA125M 2 Impco Gas Mixer
Brand: IMPCO
Price: 1 USD

Brand Name : IMPCO

Model Number : CA125M-2

Certification : UL

Place of Origin : USA

MOQ : 24

Price : Depending on quantity

Payment Terms : T/T

Supply Ability : 1200pcs per 8weeks

Delivery Time : 8 weeks

Packaging Details : carton

Product Name : Mixer

Fuel Type : LPG Vapor or Natural Gas

Mounting Position : Vertical

Diaphragm Material : Hydrin (Standard), Silicone (Optional)

HP/kW Rating : 94.0 kW / 108.8 kW

Flow Rate : 202 CFM / 235 CFM

Contact Now

IMPCO Mixer CA125M-2 , Single-Diapragm , Down Draft Air Inlet , LPG / NG Vapor Application

The Model CA125M-2 carburetor is a single-diaphragm air valve

mixer for applications requiring airflowup to 235 CFM (111 L/s). It offers a down draft air inlet and available for LPG Vapor and Natural Gas Vapor applications. Optional throttle bodies make up different carburetors

SPECIFICATIONS
Fuel Type	LPG Vapor or Natural Gas
Inlet Pressure	0.37 kPa
Operating Temperature Range	--40ºC to 121ºC
Mounting Position	Vertical
Diaphragm Material	Hydrin (Standard), Silicone (Optional)
HP/kW Rating	175.2 kW @ 111 L/s and 2.0” Hg manifold depression

235CFM Single Diapragm CA125M 2 Impco Gas Mixer
